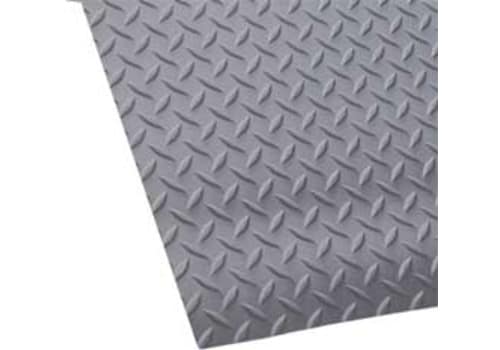

Switchboard Diamond Mat & Runner (3/16" thick)

Non-conductive mat. Non-slip top. 3/16" thick. Dielectric 30,000 VAC. Max usage 3,000 VAC.

Switchboard Diamond Mat & Runner (3/16" thick)

Item: CM-SDR

Features

  • Switchboard mats are perfect for use in high-voltage environments where workers must be protected from the danger of high voltage shock - where high voltage mats are needed. Switchboard mats act as an electric insulator between the worker and ground by providing strong dielectric properties.
  • Solid PVC diamond surface runner. Aggressive, abrasion resistant diamond pattern provides improved traction. Square corners.
  • Size: 3' x 75' x 3/16"
  • Conforms to MIL-DTL-15562-G, Type 3. Dielectric strength up to 30,000 Volts (VAC). Recommended Maximum Usage - 3000 Volts (VAC).
  • Made in America!

Description

Switchboard mat with diamond top surface.

Dielectric Switchboard Mat - Diamond Deckplate

Switchboard mats are perfect for use in high-voltage environments where workers must be protected from the danger of high voltage shock - where high voltage mats are needed. Switchboard mats act as an electric insulator between the worker and ground by providing strong dielectric properties and a high breakdown voltage rating.

Highlights:
  • Solid PVC diamond surface runner.
  • Made to protect workers from high voltage equipment.
  • Aggressive abrasion resistant diamond pattern provides improved traction and slip protection
  • Square corners.
  • Size: 3' x 75'
  • Thickness: 3/16"
  • Color: Gray
Recommended Uses:
  • General shock protection for technicians while working on high-voltage equipment
  • ISO shipping containers are often converted into portable Conex Electrical Rooms. In those situations, switchboard runners provide continuous electrical shock prevention throughout the entire length of the container.
Specifications:
  • Product Weight: 1.47 lb./s.f.
  • Thickness: 3/16"
  • Dielectric strength up to 30,000 Volts (VAC)
  • Recommended Maximum Usage - 3000 Volts (VAC)
  • Conforms to MIL-DTL-15562-G, Type 3
Request A Quote
Custom Sizes and Volume Discounts
  • 3' wide. Up to 75' long.
Made in America
