Switchboard Corrugated Runner (1/4")

Dielectric mat. Non-slip corrugated top. Comfortable, cushioned work area. 1/4" thickness. Max usage 17,000 VAC

Switchboard Corrugated Runner (1/4")

Item: CM-SCR

Share:

Features

  • Switchboard mats are perfect for use in high-voltage environments where workers must be protected from the danger of high voltage shock. Switchboard mats act as an electric insulator between the worker and ground by providing strong dielectric properties.
  • With its durable, corrugated easy to clean surface, this PVC runner improves safety with increased traction. Made to protect workers from high voltage equipment.
  • These are black mats 1/4" thick and come with corners that are square.
  • Dielectric strength up to 30,000 Volts (VAC). Recommended maximum usage - 17,000 Volts (VAC). Conforms to ASTM D-178, Class 2
  • Made in America!

Description

Switchboard mat runner with corrugated, non-slip, top surface.

Switchboard Mat
Corrugated Mat Texture
Corrugated Mat Texture
Corrugated
Corrugated

Switchboard mats are perfect for use in high-voltage environments where workers must be protected from the danger of high voltage shock. Switchboard mats act as an electric insulator between the worker and ground by providing strong dielectric properties and a high breakdown voltage rating.

Highlights:
  • Durable, corrugated surface, PVC runner improves safety with increased traction.
  • Made to protect workers from high voltage equipment.
  • Easy to clean surface.

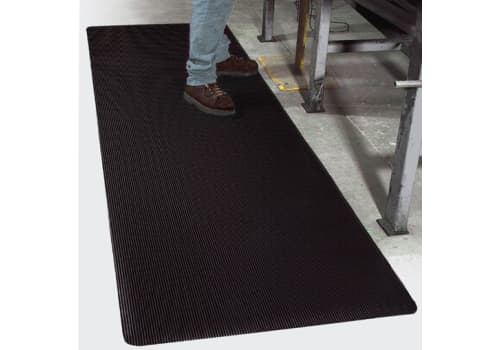

  • Corners are square - not rounded as shown in picture above.
  • Thickness: 1/4"
  • Color: Black
Recommended Uses:
  • General shock protection for technicians while working on high-voltage equipment
  • ISO shipping containers are often converted into portable Conex Electrical Rooms. In those situations, switchboard runners provide continuous electrical shock prevention throughout the entire length of the container.
Specifications:
  • Product Weight: 1.78 lb./s.f.
  • Thickness: 1/4"
  • Corners are square - not rounded as shown in picture above.
  • Dielectric strength up to 30,000 Volts (VAC)
  • Recommended maximum usage - 17,000 Volts (VAC)
  • Conforms to ASTM D-178, Class 2
Request A Quote
Custom Sizes and Volume Discounts
  • 2', 3' or 4' wide. Up to 75' long.
Made in America
